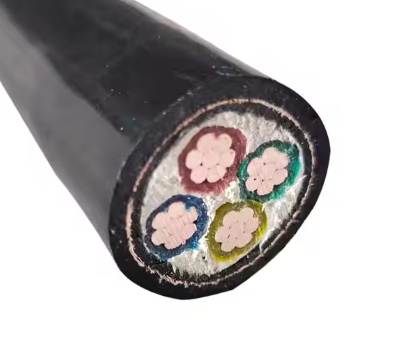

Flame Retardant Low Voltage Cable 4 Core 0.6/1kV CU/XLPE/ STA/PVC Industrial Cable

Name: Flame Retardant Low Voltage Cable 4 Core 061kV CUXLPE STAPVC Industrial Cable
Brand: Zhongdong
Price: 1 USD

Brand Name : Zhongdong

Model Number : NCYY NAYY

Certification : IEC,CE,ISO,TUV

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 7-30 days based on different qty

Packaging Details : Rolls, Wooden Drums, Steel Drums, Reels or customized

Voltage : 0.6/1kV

Insulation : PVC

Sheath : PVC

Conductor : Copper

Contact Now

Flame Retardant Low Voltage Cable 4 Core 0.6/1kV CU/XLPE/ STA/PVC Industrial Cable

APPLICATION

This product is suitable for use in circuits with a rated voltage not exceeding 0.6/1kV, for the purpose of power transmission and distribution.

CONSTRUCTION

Conductor: Class 1 or class 2 stranded Copper conductor
Insulation: Cross-Linked Polyethylene(XLPE)
Inner sheath: Polyvinyl chloride (PVC)
Armour: Single core: Steel Tape Multi core: Galvanized Steel Tape
Outer sheath: Polyvinyl chloride (PVC)

CHARACTERISTIC

Voltage Rating Uo/U: 0.6/1kV
Maximum system voltage: 12kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -20℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:15D Multicire: 12D

SPECIFICATION

Specs mm²	Conductor diameter mm	Nominal thickness of insulation mm	Thickness of lining mm	Nominal thickness of steel tape m m	Nominal thickness of sheath mm	Approximate outer diameter of cable mm	Approximate cable weight kg/km
4×1.5	1.38	0.7	1.0	0.2	1.8	14.2	299
4×2.5	1.78	0.7	1.0	0.2	1.8	15.2	362
4×4	2.25	0.7	1.0	0.2	1.8	16.3	446
4×6	2.76	0.7	1.0	0.2	1.8	17.5	551
4×10	4.0	0.7	1.0	0.2	1.8	20.5	745
4×16	5.0	0.7	1.0	0.2	1.8	22.9	1019
4×25	6.1	0.9	1.0	0.2	1.8	26.6	1460
4×35	7.2	0.9	1.0	0.2	1.8	29.4	1886
4×50	8.4	1.0	1.0	0.2	1.9	33.0	2441
4×70	10.0	1.1	1.2	0.2	2.1	38.2	3409
4×95	12.0	1.1	1.2	0.5	2.3	44.8	4969
4×120	13.0	1.2	1.4	0.5	2.4	48.3	6063
4×150	14.9	1.4	1.4	0.5	2.6	54.3	7423
4×185	16.5	1.6	1.6	0.5	2.7	59.8	9085
4×240	18.4	1.7	1.6	0.5	2.9	65.3	11516
4×300	21.0	1.8	1.6	0.5	3.1	72.5	14178
4×400	23.4	2.0	1.8	0.5	3.4	80.3	17925

ABOUT US

Flame Retardant Low Voltage Cable 4 Core 0.6/1kV CU/XLPE/ STA/PVC Industrial Cable

APPLICATION

Flame Retardant Low Voltage Cable 4 Core 0.6/1kV CU/XLPE/ STA/PVC Industrial Cable

PACKAGE

PARTNER

Flame Retardant Low Voltage Cable 4 Core 0.6/1kV CU/XLPE/ STA/PVC Industrial Cable

FAQ

1. Are you a manufacturer or trading company?
We are a professional cable manufacturer more than 20 years.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
We adopt flexible MOQ Policy. But the cable is very heavy, a suitable quantity could avoid the high freight.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight.

5. Does your company accept OEM production?
Yes, We support OEM/ODM service
